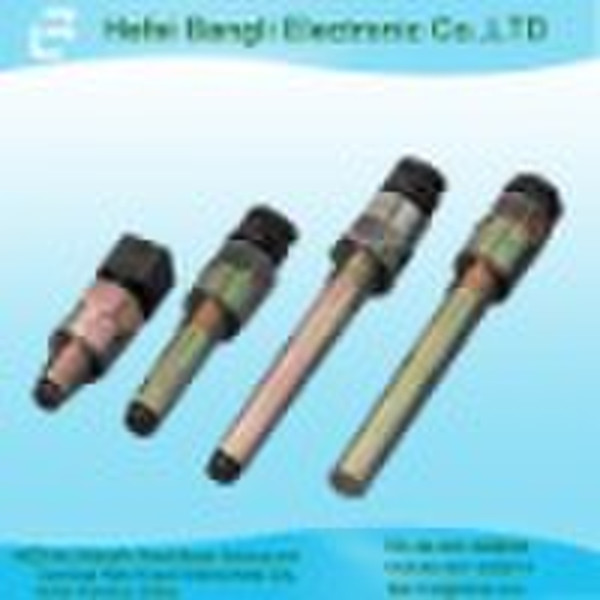

auto parts odometer sensor

Product Function: To detect the transmission output shaft gear, the gear turn signals into electric pulse signals, the output pulse can be used for instrumentation, vehicle traveling data recorder and other electronic components used to calculate speed and distance information. The series of sensor non-contact measurement, eliminating the conventional speed sensor and mechanical shaft flexible shaft design, a fundamental solution to the speed sensor reliability mileage is poor, failure rate and other issues Features / Benefits: Non-contact measurement Dual pulse output (positive and negative identification) Various specifications for different types gearbox Performance parameters: Operating voltage: 6.5 30V Output: double pulse (positive and negative phase) Power consumption: 16mA maximum Operating temperature: -30 +125degree Storage temperature: -40 +140 degree Frequency (max): 4kHz Protection resistance: 1.5kΩ Signal Type: Rectangular wave Output signal: A1ULmax1.9V (1mA) Output signal: A2A1 RP Radiation protection: DIN 40 839 T4 (Vm) 30V 1 m Output short circuit protection: IEC 529 IP 67 Waterproof and dustproof protection: IEC 529 IP 67 Earthquake resistance: 30g Impact resistance: 100g, 11ms, 50 cycles Sealing: 0.5Bar hydraulic, 120 degree, 100h The gap between sensor and gear (typical): 1.4mm Sensor failure external magnetic field strength:> 2mT The connection between sensor and cable: Bayonet plug / DIN 72585-A1-4.1 * standard plug Sensor and the connection between the gear box: thread M18X1.5 Torque (wrench size): Max 50Nm (WS 27) Weight: about 80 160g Size (diameter X length unit mm): about 16X19.8/25/35/63.2/90/115/136.8
